Cropwise Financials offers a variety of drawing and import tools to manually build out a Farm Field Tree. If an existing Farm Field tree needs to be imported instead, click here to view a step-by-step guide for this process.
To begin adding fields, navigate to the Properties menu and then select the + New Property drop down and select the Field button.
Next, select the Draw your fields option.
On the left-side of the screen, select an existing Farm or create a new Farm as needed. Once the Farm is identified, input the name of the new field.
Next, use the mouse to navigate and zoom within the map to discover the field. Note that a search icon is available in the lower-right corner to search for a location using a Zip Code, Address or Latitude/ Longitude. Or zoom to your current location using the target icon.
CLU and SAT options in the upper-left corner can be toggled on to select an existing boundary. Note that the availability of these boundaries can vary from state to state. Simply click which CLU or SAT boundary you would like to automatically identify as the field boundary.
Select the Import button to import an existing shapefile for the new field and then select Click or drag file to this area to upload a zipped folder that contains the shapefiles.
Check the desired field and then select the Import button.

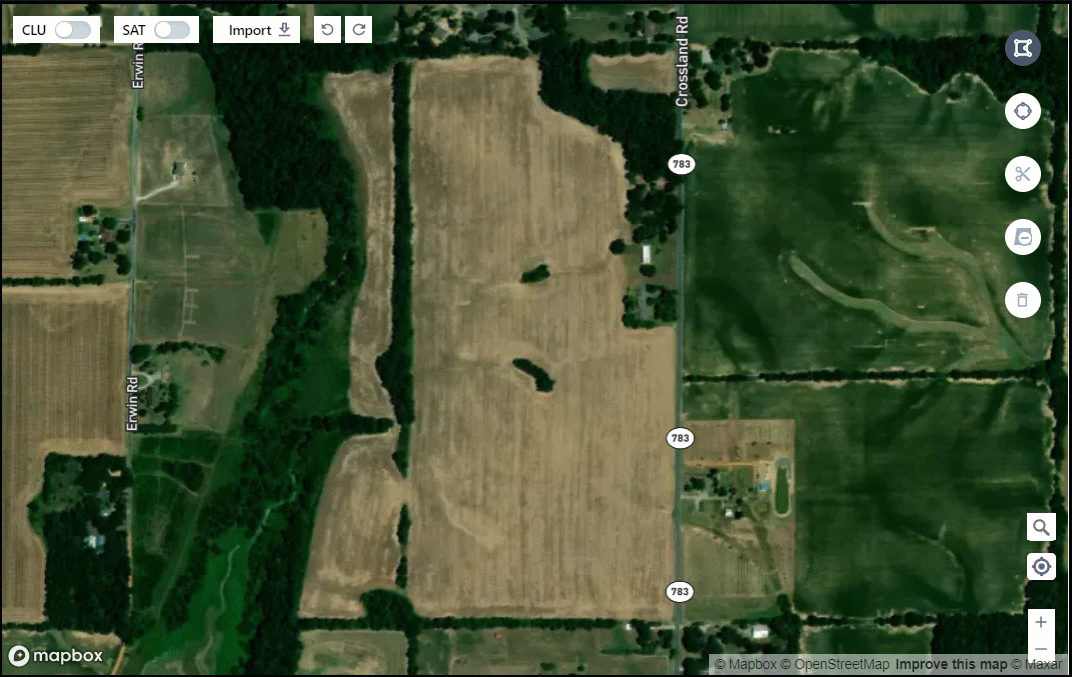

Additional drawing tools are available such as the Draw Polygon tool. With this tool activated, simply click around the perimeter of the field to establish unique boundary points. Double click the last point to complete the field boundary.
The Draw Pivot tool will identify a pivot by navigating to the center of the pivot, left click and hold the mouse until the diameter of the pivot as reached its necessary extent. Once the pivot is established, individual boundary points can be adjusted to remove road and field overlaps, for example.
The Split Tool creates a division across a field boundary by a straight or multi-point line. The division line must cross the boundary of the field to create the split.
Once a field boundary is identified with any drawing tool, a Reported Area can be captured optionally if the Boundary Area does not closely represent the true acreage of the field. Next, select the Save Field button to finish creating the new field and be returned back to the Properties menu. Selecting the drop down arrow next to Save Field contains options to either Save and draw a new field or Save and add a crop zone.
Click below to watch a video on creating a Farm Field Tree in Cropwise Financials.
Click here to learn how to import a Farm Field tree into Cropwise Financials.
Click here to learn how to assign a crop zone to a field.
If you have any questions regarding this content, please reach out to us with the contact information provided below.
